Exhale in building and renovation
You are in the building or renovation trade and would like to equip your workplace with the first bladeless vortex ceiling fan? Find all the information you need on this page!
To contact us, please don't hesitate to complete the form: Contact Exhale Fans Europe
4 reasons for choosing Exhale for an eco-responsible building
1. Thermal Regulation 2012
The Exhale fan perfectly meets the 3 requirements of the French TR 2012.
- Bioclimatic needs (Bbio)
- Energy consumption. Its DC motor uses up to 80% less electricity than a traditional AC motor.
- All year round comfort. Its technology maintains a stable, ideal temperature in all seasons

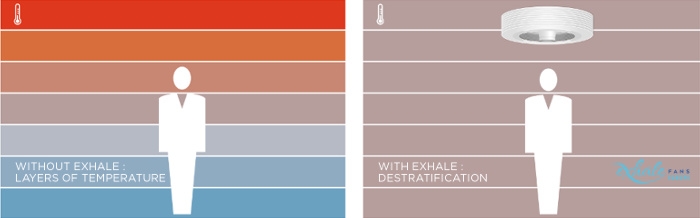

2. Destratification
The Exhale fan homogenises the temperature in all 4 corners of a room of an area of up to 100m2 and up to 6 metres ceiling height while breaking up the thermal stratification (the movement of warm air in the upper part to the lower part). For larger rooms, 2 fans spinning in opposite direction (figure of 8 effect between the two fans) can equally maintain a homogenous thermal regulation. It is possible therefore to moderate large areas by increasing the number of fans.
The destratification results in:
- the significant reduction of the loss of heat towards the higher part, thus a reduction of the energy consumption.
- A significant increase of personal comfort at a set temperature.
- an increase of the airflow.
3. Hygiene, ecology and economy
In times when air conditioning is sometimes called into question as a result of its impact on the environment and consumers' wallets, the Exhale fan offers a real economical and ecological alternative.
The Exhale fan which, maintained the air in constant movement, eliminates all moisture and prevents the development of any mould.
Its DC motor is ecological compared to its AC equivalent and the savings are significant.
The Exhale fan is doubly an economical factor since it increases the efficiency of heating appliances by reducing their workcharge and cost of use throughout the year.
ENERGY SAVING OF TO UP TO 38% USA STUDY 2013
4. Elegance and efficiency
The sleek, spherical design, without any visible screws, of the Exhale fan fits in perfectly to all interiors.
Its ingenious system provides maximum comfort thanks to its multi-directional (Vortex) yet silent ventilation (40-45 db max).
Which model to choose?
Exhale fan (without LED)
Exhale fan with LED
Second-hand models
Patented technological innovation
The real technological innovation lies in the air flow (Vortex) distributed at 360 degrees to achieve total ventilation of the room. The multi-directional flow is felt all over the room and creates a relaxing environment to all its occupants.

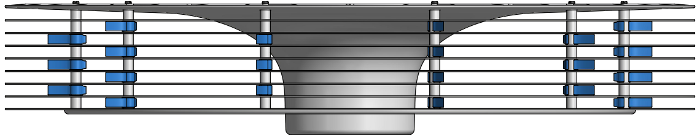

Exhale fan with Typhoon fins
The (removable) Typhoon fins are fitted between the blades of the fan resulting in increased ventilation efficiency to between 25 and 40%. The fan spins more slowly and uses even less energy.
How does it work?
The VORTEX effect, an efficient patented innovation

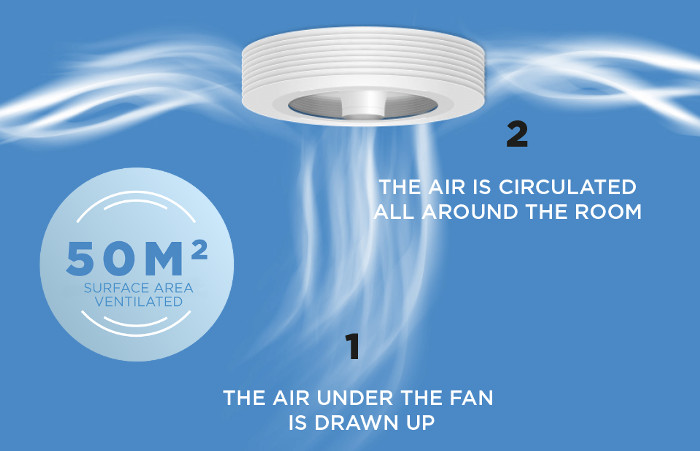

The Exhale fan is unique in that it creates a VORTEX effect by drawing in air from below and redirecting it out at 360 degrees for a total ventilation over the whole area of the room.
Thanks to its high efficiency motor and its competitive design, the high speed air displacement reaches 2.97 m3 per minute (i.e. 2973 litres per minute). But over and above the technical characteristics, the real difference remains in the Vortex effect created. During use, the airflow increases resulting in the major effect stabilising the temperature in the room.
The air is firstly drawn up then distributed all around the room.
Every detail counts

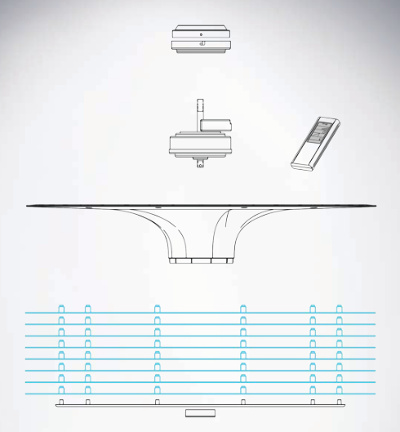

See the schema listing all the elements of the Exhale fan here: How the Exhale fan is composed.
DC electricity supply for lower consumption: we have developed an exclusive DC motor to maintain a maximum rotation speed (more than 300rpm) with an optimal efficiency. DC motors are ecological compared to their equivalent AC models. They use between 50 and 80% less electricity!
A motor stemming from space technology: our motor was developed with an ingenious turbine stemming from space technology. It reproduces the function of an aeroplane jet engine. Its technicality guarantees a free air flow through our ceiling fan.
Disks which create a 360 degree Vortex effect: the air molecules are ejected out by centrifugal force. When one is ejected, another takes its place on entering by the centre, its the Vortex effect. While ejecting the air at 360 degrees, the Exhale fan gradually transforms its environment into a place of perfect comfort in all seasons!
Exemplary finish: we wished to preserve the refined style by a careful design such that no screw nor bolt should be seen from any angle, resulting in a fan with unique design and efficiency.
LEDs (optional): this ceiling fan is available with or withot LEDs (2 models).
Technical characteristics
Dimensions: Height 18 cm – Diameter 86,4 cm
Weight: 11.4kg
Colour: White
Remote control: at 6 speeds
Sound volume: from 27db to 40db
Airflow displaced: 115 803 litres per minute (115 m3/min)
Warranty (parts): Fan: life; motor: 5 years.
Electricity consumption and noise level
Level 1: 4 Watts, 120 rpm, 27* dB
Level 2: 6 Watts, 158 rpm, 31,5* dB
Level 3: 9 Watts, 198 rpm, 37,5* dB
Level 4: 16 Watts, 236 rpm, 38,1* dB
Level 5: 36 Watts, 274 rpm, 38,7* dB
Level 6: 50 Watts, 312 rpm, 40* dB
*With the optional removable Typhoon fins. The ventilation is 25 to 40% more effective with a slight increase in dB
