Public buildings

You are looking to reduce your heating and air-conditioning costs along with taking advantage of a product which meets the requirements of the French Thermal Regulations 2012. Exhale sanitizes the air by constant circulation. This bladeless ceiling fan of sleek design, silent and ecological is ideal for large areas open to visitors.

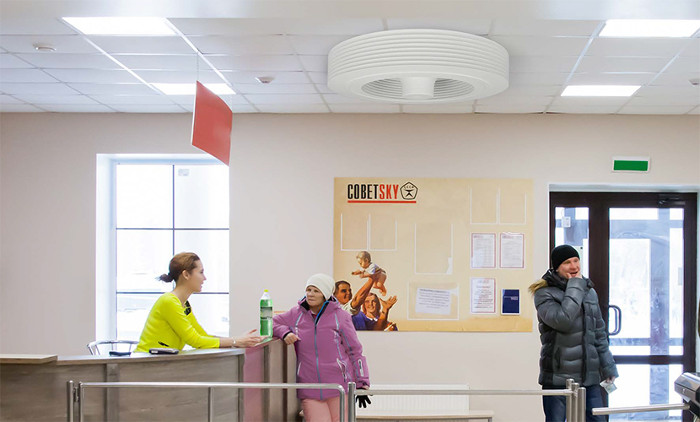

Hospitals, administrative centres, stations, airports. Make your waiting room a sanitized area where it feels good to be, with the Exhale fan!

To contact us, please don't hesitate to complete the form: Contact Exhale Fans Europe

bladeless ceiling fan for public building

6 reasons to choose Exhale to make waiting into a pleasant moment

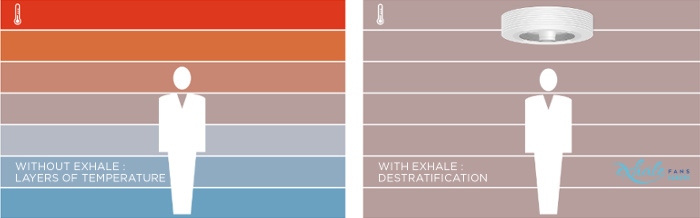

1. Thermal destratification

The Exhale fan creates a uniform temperature in all 4 corners of the room up to 50m2 and 6m in height by breaking up the thermal stratification and causing the displacement of the warm air in the top part of the room to the lower part. For larger areas, 2 fans spinning in opposite directions can also maintain a uniform thermal regulation. This destratification results in.

  • the significant reduction of the loss of heat towards the higher part, thus a reduction of the energy consumption.
  • a significant increase of personal comfort at a set temperature.
  • an increase of the airflow bringing a purifying effect of the atmosphere.
temperature management in public buildings

2. For very large areas

The Exhale fan complies perfectly to the 3 requirements of the French TR 2012.

  • Bioclimatic requirements (Bbio).
  • Energy consumption. Its DC motor uses up to 80% less electricity than a traditional AC motor.
  • All year round comfort. Its technology maintains a stable, ideal temperature in all seasons.

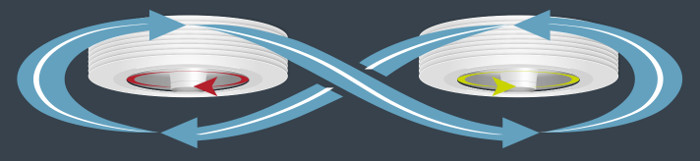

2 fans functioning together to ventilate large area

2 fans functioning together create a figure of 8 effect to ventilate rooms of more than 100m2

3. Hygiene and public health

The Exhale fan makes permanently circulate the air through the room. It eliminates all moisture and prevents the development of bacteria and mould. In a public sphere, it is a true societal prophylatic measure added to which the public will be more inclined to visit.

4. Ecology

The Exhale fan is ecological and uses far less energy than a traditional air-conditioning unit.

Its DC motor uses up to 80% less than an AC motor. The area will be among the places respectful of the environment.

5.  Economy

The Exhale fan has a double economical factor since, while running alongside heating and air-conditioning units, it increases their efficiency by reducing their workload and cost of running throughout the year. A study has shown energy savings up to 38%.

ENERGY SAVING OF TO UP TO 38% USA STUDY 2013

6. Ambiance relaxation and silent efficiency

The ingenious system of the Exhale fan offers a maximum comfort thanks to a multidirectional ventilation (vortex) but practically imperceptible (40-43db max).

The public will find an area of relaxation there which will be particularly appreciated for its hushed atmosphere.

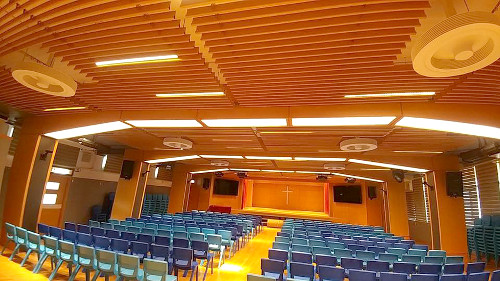

Exhale fans airing large class room

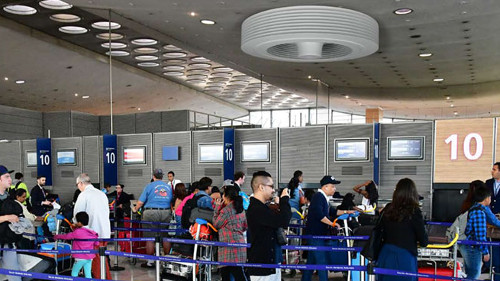

Exhale fan for airport and public buildings

Which model to choose?

Ceiling fan without blade

Exhale fan (without LED)

ceiling fan with led light

Exhale fan with LED

second-hand bladeless ceiling fan

Second-hand models


How does it work?

The VORTEX effect, an efficient patented innovation

The Exhale fan is unique in that it creates a VORTEX effect by drawing in air from below and redirecting it out at 360 degrees for a total ventilation over the whole area of the room (even very large rooms - 1 Exhale = 50m2).

Thanks to its high efficiency motor and its competitive design, the high speed air displacement reaches 2.36 m3 per minute (i.e. 2360 litres per minute). But over and above the technical characteristics, the real difference remains in the Vortex effect created. During use, the airflow increases resulting in the major effects of purifying the air and stabilising the temperature in the room.

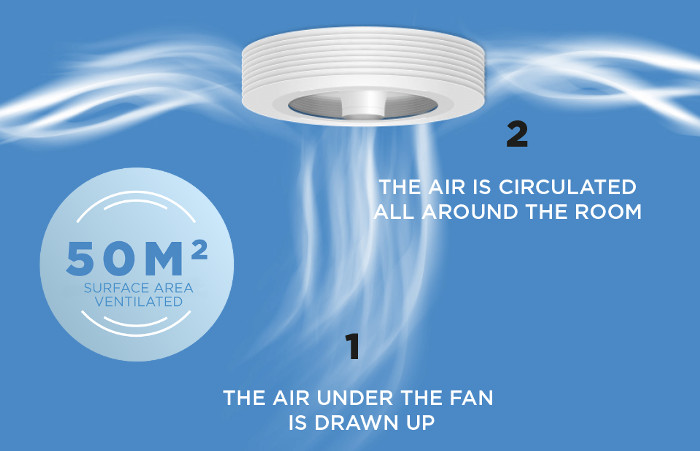

air blower exhale fan

The air is firstly drawn up then distributed all around the room.

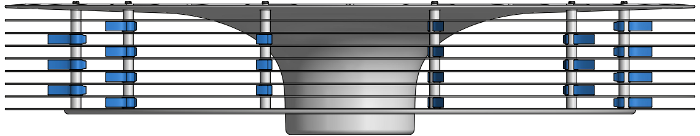

Typhoon fins for ceiling fan

Patented technological innovation

The real technological innovation lies in the air flow (Vortex) distributed at 360 degrees to achieve total ventilation of the room. The multi-directional flow is felt all over the room and creates a relaxing environment to all its occupants.

Exhale fan with Typhoon fins

The (removable) Typhoon fins are fitted between the blades of the fan resulting in increased ventilation efficiency to between 25 and 40%. The fan spins more slowly and uses even less energy.


Every detail counts

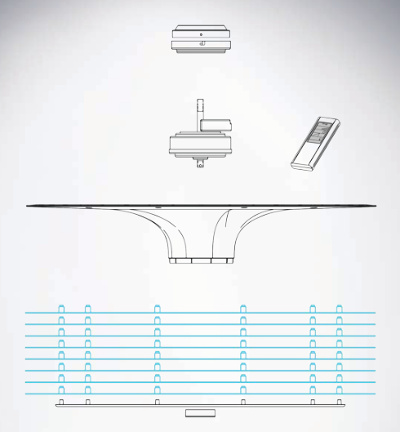

See the schema listing all the elements of the Exhale fan here: How the Exhale fan is composed.

DC electricity supply for lower consumption: we have developed an exclusive DC motor to maintain a maximum rotation speed (more than 300rpm) with an optimal efficiency. DC motors are ecological compared to their equivalent AC models. They use between 50 and 80% less electricity!

A motor stemming from space technology: our motor was developed with an ingenious turbine stemming from space technology. It reproduces the function of an aeroplane jet engine. Its technicality guarantees a free air flow through our ceiling fan.

Disks which create a 360 degree Vortex effect: the air molecules are ejected out by centrifugal force. When one is ejected, another takes its place on entering by the centre, its the Vortex effect. While ejecting the air at 360 degrees, the Exhale fan gradually transforms a contaminated environment into a place of perfect comfort in all seasons!

Exemplary finish: we wished to preserve the refined style by a careful design such that no screw nor bolt should be seen from any angle, resulting in a fan with unique design and efficiency.

LEDs (optional): this ceiling fan is available with or withot LEDs (2 models).

Technical characteristics

Dimensions: Height 18 cm – Diameter 86,4 cm

Weight: 11.3kg

Colour: White

Remote control: at 6 speeds

Sound volume: from 33-35db to 40-43 db

Airflow displaced: 2360 litres per minute (2.36 m3/min)

Warranty: Fan: life; motor: 5 years; electronics: 2 years



Electricity consumption and noise level

Level 1: 1,5 Watts, 80 rpm, 33-35* dB

Level 2: 3 Watts, 120 rpm, 35-37* dB

Level 3: 6 Watts, 160 rpm, 36-38* dB

Level 4: 12,5 Watts, 200 rpm, 37-38* dB

Level 5: 25 Watts, 240 rpm, 38-41* dB

Level 6: 50 Watts, 300 rpm, 40-43* dB

*With the optional removable Typhoon fins.  The ventilation is 25 to 40% more effective with a slight increase in dB
