You are a company looking to equip its offices, meeting rooms or IT rooms (IT servers...) with economical and ecological fans.

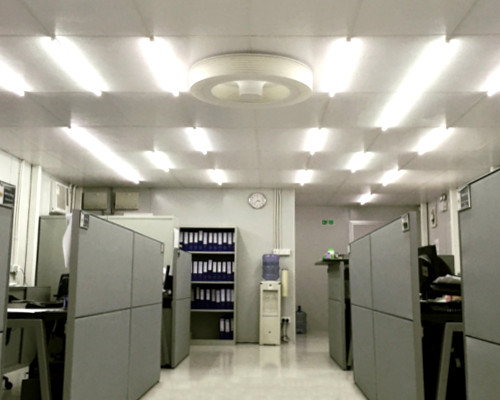

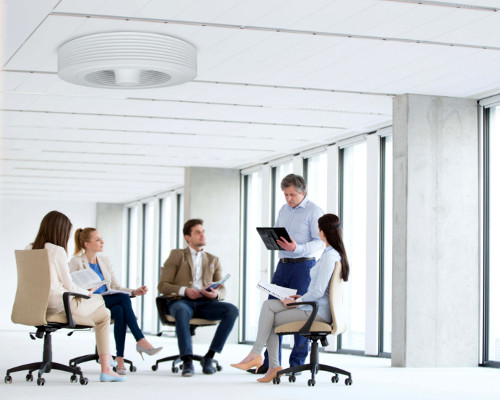

Customers' reception hall, open space, meeting room, IT room, storehouse... all these zones can be maintained in a temperate atmosphere - whatever their surface area - for the wellbeing of staff and also the preservation of IT equipment, as for all merchandise.
To contact us, please don't hesitate to complete the form: Contact Exhale Fans Europe

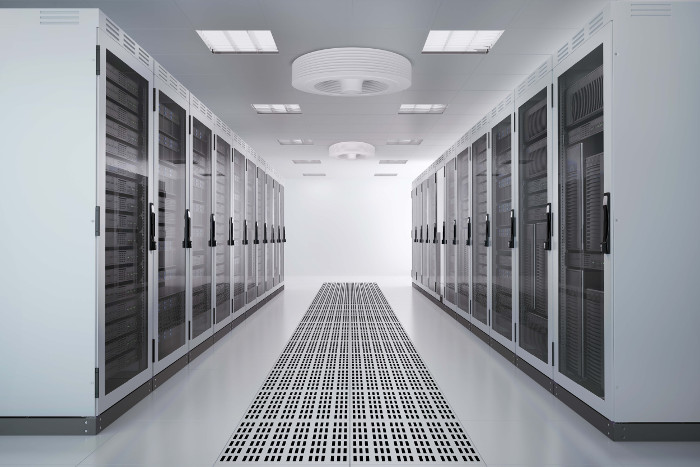

Preserve the lifespan of your servers by ventilating your rooms.
An Exhale fan creates a uniform temperature in all 4 corners of the room up to 50m2 and 6m in height by breaking up the thermal stratification and causing the displacement of the warm air in the top part of the room to the lower part. For larger areas, 2 fans spinning in opposite directions can also maintain a uniform thermal regulation. A temperate atmosphere can thus be obtained even in extremely large halls by multiplying the number of fans.

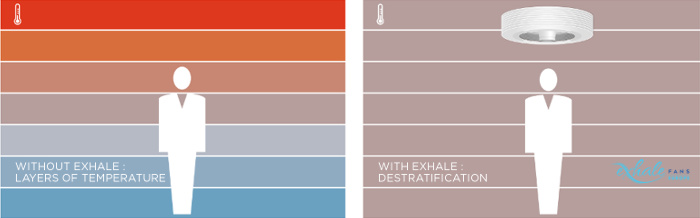

This destratification results in:
The Exhale fan perfectly meets the 3 requirements of the French TR 2012.
At a time when air-conditioning is often accused for its impact on the health, the environment and its expensive cost, the Exhale fan offers an ecological and economical alternative.
The Exhale fan sanitizes the air which, while being kept in constant movement, eliminates all moisture and prevents the development of bacteria and any mould. Its DC motor is ecological compared to its AC equivalent and the finanancial gain is significant.
The Exhale fan has a double economical factor, as it functions alongside heating appliances while increasing their efficiency and reducing their workloads also running costs all year round.
The sleek, spherical design of the Exhale, with no visible screws, fits in perfectly with all interiors.
Its ingenious system provides maximum comfort thanks to a multi-directional ventilation (Vortex) yet sislent (40-43db max).
The real technological innovation lies in the air flow (Vortex) distributed at 360 degrees to achieve total ventilation of the room. The multi-directional flow is felt all over the room and creates a relaxing environment to all its occupants.
The (removable) Typhoon fins are fitted between the blades of the fan resulting in increased ventilation efficiency to between 25 and 40%. The fan spins more slowly and uses even less energy.
The Exhale fan is unique in that it creates a VORTEX effect by drawing in air from below and redirecting it out at 360 degrees for a total ventilation over the whole area of the room (even very large rooms - 1 Exhale = 50m2).
Thanks to its high efficiency motor and its competitive design, the high speed air displacement reaches 2.36 m3 per minute (i.e. 2360 litres per minute). But over and above the technical characteristics, the real difference remains in the Vortex effect created. During use, the airflow increases resulting in the major effects of purifying the air and stabilising the temperature in the room.

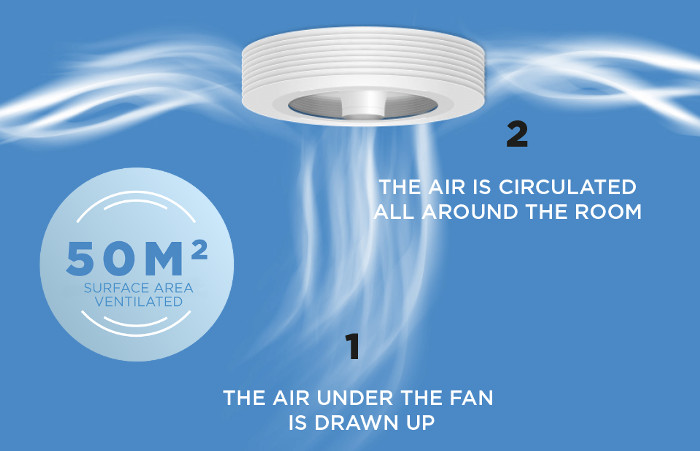

The air is firstly drawn up then distributed all around the room.

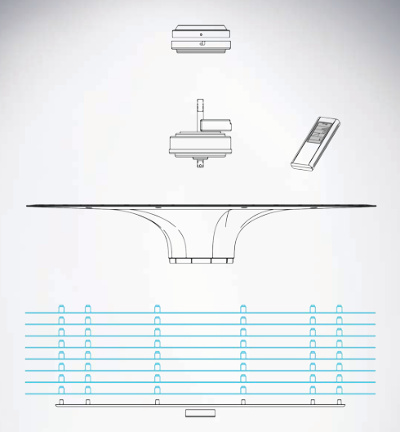

See the schema listing all the elements of the Exhale fan here: How the Exhale fan is composed.
DC electricity supply for lower consumption: we have developed an exclusive DC motor to maintain a maximum rotation speed (more than 300rpm) with an optimal efficiency. DC motors are ecological compared to their equivalent AC models. They use between 50 and 80% less electricity!
A motor stemming from space technology: our motor was developed with an ingenious turbine stemming from space technology. It reproduces the function of an aeroplane jet engine. Its technicality guarantees a free air flow through our ceiling fan.
Disks which create a 360 degree Vortex effect: the air molecules are ejected out by centrifugal force. When one is ejected, another takes its place on entering by the centre, its the Vortex effect. While ejecting the air at 360 degrees, the Exhale fan gradually transforms a contaminated environment into a place of perfect comfort in all seasons!
Exemplary finish: we wished to preserve the refined style by a careful design such that no screw nor bolt should be seen from any angle, resulting in a fan with unique design and efficiency.
LEDs (optional): this ceiling fan is available with or withot LEDs (2 models).
Dimensions: Height 18 cm – Diameter 86,4 cm
Remote control: at 6 speeds
Sound volume: from 33-35db to 40-43 db
Airflow displaced: 2360 litres per minute (2.36 m3/min)
Warranty: Fan: life; motor: 5 years; electronics: 2 years
Level 1: 1,5 Watts, 80 rpm, 33-35* dB
Level 2: 3 Watts, 120 rpm, 35-37* dB
Level 3: 6 Watts, 160 rpm, 36-38* dB
Level 4: 12,5 Watts, 200 rpm, 37-38* dB
Level 5: 25 Watts, 240 rpm, 38-41* dB
Level 6: 50 Watts, 300 rpm, 40-43* dB
*With the optional removable Typhoon fins. The ventilation is 25 to 40% more effective with a slight increase in dB
