Museum

You manage a museum or a place of low noise tolerance.... You wish to preserve the showpieces thanks to a quality ventilation. The Exhale fan stabilises the temperature and eliminates moisture in particular in very large rooms with high ceilings.

To contact us, please don't hesitate to complete the form: Contact Exhale Fans Europe

Ventilation for museum

7 reasons to choose Exhale for a well-appreciated place!

1. The Exhale fan is practically noiseless

Even at maximum speed, it does not exceed 40-43db and will not trouble the peace and contemplation of the visitors.

2. Stabilisation of the temperature

In all seasons, the Exhale fan stabilises an temperature ideal for the public and for the showpieces on exhibit. By destratification, warmth is spread uniformly to all 4 corners of a room up to 50m2 and 6m in height.

For larger areas, 2 fans spinning in opposite directions will maintain a uniform thermal regulation. It is thus possible to achieve a pleasant ambiance in extremely large areas by fitting an infinite number of fans.

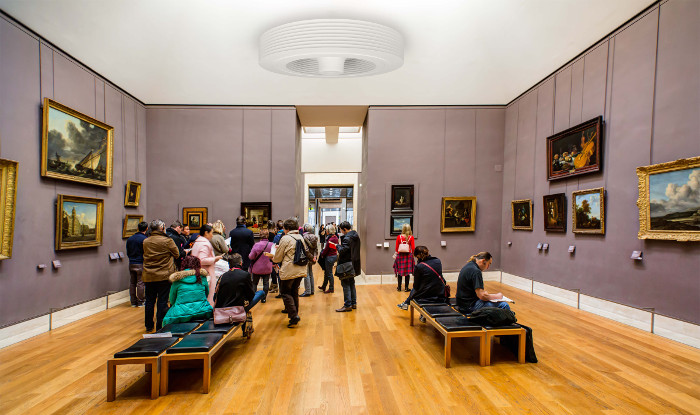

Airing a room with exhale fans

3. Preservation of the showpieces

The Exhale fan preserves the health of both the works exhibited and the public. As the air in the room is constantly in movement, all moisture is definitively eliminated.

4. Elegance, sleek and sober design

The Exhale fan incarnates elegance and sobriety. Its sleek spherical design, with no visible screws, will fit in perfectly with all types of architecture.

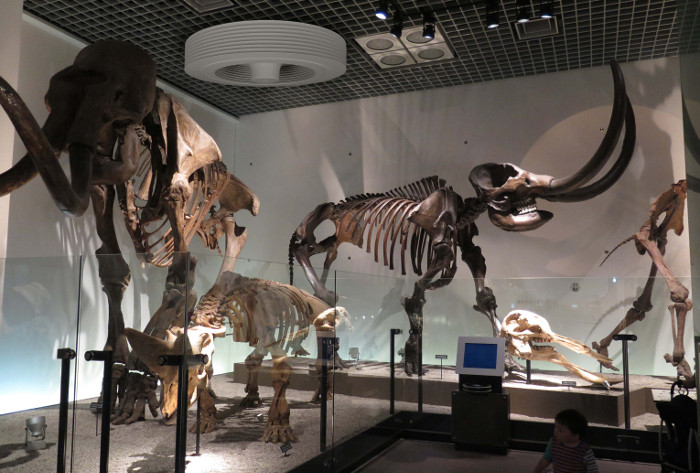

Exhale fan for museum

5. Ecology

The Exhale fan is ecological and requires a great deal less energy that a traditional air-conditioning unit. It will place you among the museums that are respectful of the environment. It meets the requirements of the results of the Thermal Regulations 2012:

  • Bioclimatic requirements (Bbio).
  • Energy consumption. Its DC motor uses up to 80% less electricity than a traditional AC motor.
  • All year round comfort. Its technology maintains a stable, ideal temperature in all seasons.
objectif RT 2012

6. The Exhale fan is economical

Its DC motor uses up to 80% less electricity than a traditional AC motor. In addition it operates alongside heating and air-conditioning units to increase their efficiency by reducing their workload and running costs all year round.

ENERGY SAVING OF TO UP TO 38% USA STUDY 2013

7. Easy installation

The Exhale fan is easy to install, as all other ceiling fans and its installation will not peturb the public opening hours.

Video for Exhale installation

Which model to choose?

Bladeless ceiling fan without blade

Exhale fan (without LED)

museum ceiling fan with led light

Exhale fan with LED

second-hand bladeless fan

Second-hand models


Patented technological innovation

The real technological innovation lies in the air flow (Vortex) distributed at 360 degrees to achieve total ventilation of the room. The multi-directional flow is felt all over the room and creates a relaxing environment to all its occupants.

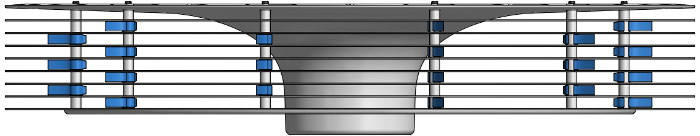

Exhale fan with Typhoon fins

The (removable) Typhoon fins are fitted between the blades of the fan resulting in increased ventilation efficiency to between 25 and 40%. The fan spins more slowly and uses even less energy.

Typhoon fins for ceiling fan



How does it work?

The VORTEX effect, an efficient patented innovation

The Exhale fan is unique in that it creates a VORTEX effect by drawing in air from below and redirecting it out at 360 degrees for a total ventilation over the whole area of the room (even very large rooms - 1 Exhale = 50m2).

Thanks to its high efficiency motor and its competitive design, the high speed air displacement reaches 2.36 m3 per minute (i.e. 2360 litres per minute). But over and above the technical characteristics, the real difference remains in the Vortex effect created. During use, the airflow increases resulting in the major effects of purifying the air and stabilising the temperature in the room.

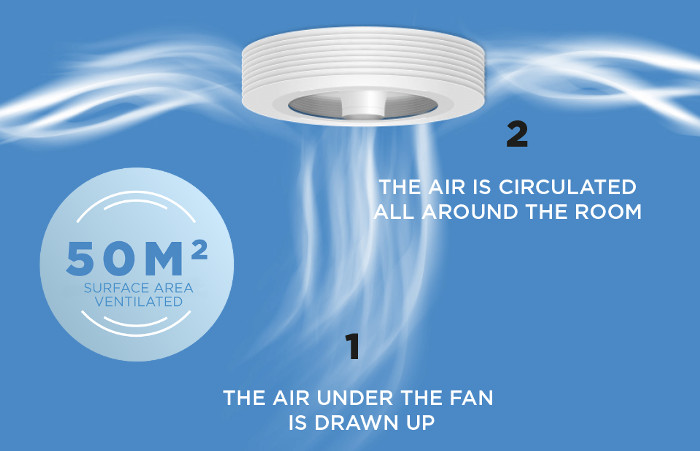

air blower exhale fans

The air is firstly drawn up then distributed all around the room.

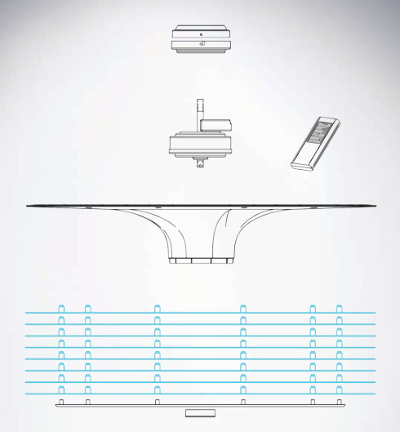

Every detail counts

See the schema listing all the elements of the Exhale fan here: How the Exhale fan is composed.

DC electricity supply for lower consumption: we have developed an exclusive DC motor to maintain a maximum rotation speed (more than 300rpm) with an optimal efficiency. DC motors are ecological compared to their equivalent AC models. They use between 50 and 80% less electricity!

A motor stemming from space technology: our motor was developed with an ingenious turbine stemming from space technology. It reproduces the function of an aeroplane jet engine. Its technicality guarantees a free air flow through our ceiling fan.

Disks which create a 360 degree Vortex effect: the air molecules are ejected out by centrifugal force. When one is ejected, another takes its place on entering by the centre, its the Vortex effect. While ejecting the air at 360 degrees, the Exhale fan gradually transforms a contaminated environment into a place of perfect comfort in all seasons!

Exemplary finish: we wished to preserve the refined style by a careful design such that no screw nor bolt should be seen from any angle, resulting in a fan with unique design and efficiency.

LEDs (optional): this ceiling fan is available with or withot LEDs (2 models).

Technical characteristics

Dimensions: Height 18 cm – Diameter 86,4 cm

Weight: 11.3kg

Colour: White

Remote control: at 6 speeds

Sound volume: from 33-35db to 40-43 db

Airflow displaced: 2360 litres per minute (2.36 m3/min)

Warranty: Fan: life; motor: 5 years; electronics: 2 years



Electricity consumption and noise level

Level 1: 1,5 Watts, 80 rpm, 33-35* dB

Level 2: 3 Watts, 120 rpm, 35-37* dB

Level 3: 6 Watts, 160 rpm, 36-38* dB

Level 4: 12,5 Watts, 200 rpm, 37-38* dB

Level 5: 25 Watts, 240 rpm, 38-41* dB

Level 6: 50 Watts, 300 rpm, 40-43* dB

*With the optional removable Typhoon fins.  The ventilation is 25 to 40% more effective with a slight increase in dB
